If your Xiaomi scooter brakes feel loose, make noise, rub against the disc, or don’t stop properly, this guide explains exactly how to fix it.

This guide covers:

  • Brake adjustment
  • Brake pad replacement
  • Brake disc alignment
  • Brake lever issues
  • Brake cable / brake line problems
  • Common brake noises

How Xiaomi Brakes Work

Most Xiaomi models use:

  • Rear mechanical disc brake
  • Front electronic regenerative braking

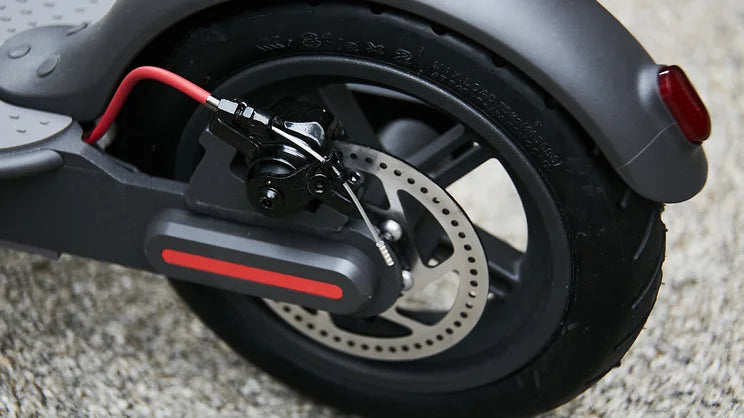

The mechanical rear brake includes:

  • Brake lever
  • Brake cable (brake line)
  • Caliper
  • Brake pads
  • Brake disc (rotor)

Understanding this system helps diagnose issues quickly.

How to Adjust Xiaomi Brakes (Step-by-Step)

Loose brakes are extremely common.

Signs Your Brakes Need Adjusting

  • Lever pulls too far back
  • Weak stopping power
  • Delayed brake response

Step 1: Adjust the Brake Cable Barrel Adjuster

Located near the brake lever.

  • Turn counterclockwise to tighten
  • Turn clockwise to loosen

This is the quickest fix for minor looseness.

Step 2: Adjust the Rear Caliper

If the barrel adjuster isn’t enough:

  1. Loosen the two caliper mounting bolts
  2. Squeeze the brake lever
  3. While holding the lever, tighten the bolts

This centres the caliper on the brake disc.

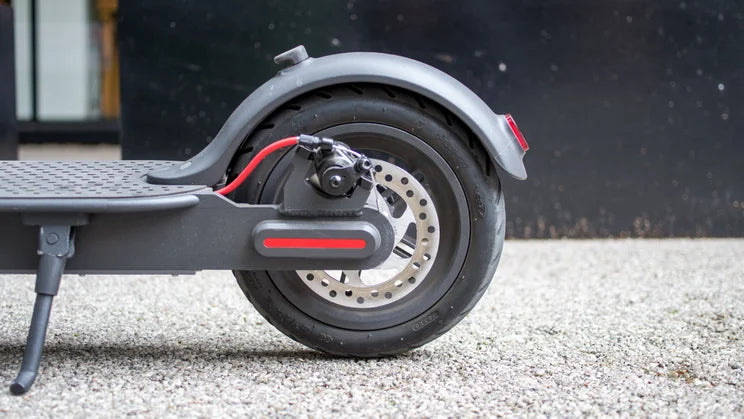

Xiaomi Brake Disc Rubbing – How to Fix

A rubbing sound usually means:

  • Misaligned caliper
  • Warped disc
  • Worn pads
  • Loose wheel

Fixes:

✔ Re-centre the caliper

✔ Inspect brake disc for bends

✔ Tighten rear wheel

✔ Replace worn pads

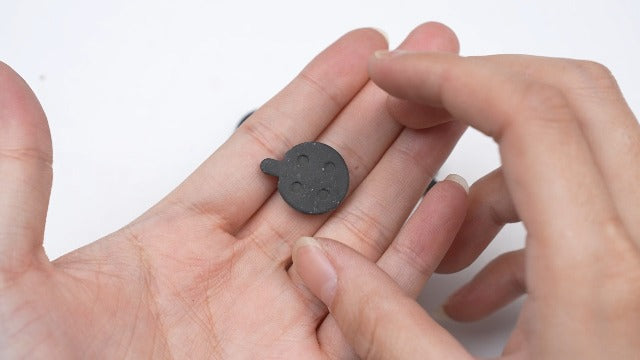

Xiaomi Brake Pad Replacement Guide

Brake pads are wear-and-tear items and should be replaced when:

  • Thickness is below 1mm
  • Braking feels weak
  • You hear metal scraping

How to Replace Brake Pads

  1. Remove rear wheel
  2. Remove caliper bolts
  3. Slide out old pads
  4. Insert new pads
  5. Reinstall and adjust

Regular pad replacement prevents damage to the brake disc.

Replacement brake pads for xiaomi m365, 1S & Pro 2

Common Xiaomi Brake Noises Explained

Squeaking

Usually caused by:

  • Dust buildup
  • Glazed pads
  • Slight misalignment

Cleaning or replacing pads often solves this.

Grinding Noise

Serious warning sign.

Often means:

  • Pads completely worn
  • Metal-on-metal contact
  • Disc damage

Replace pads immediately to avoid disc replacement.

Clicking Sound

Can indicate:

  • Loose caliper
  • Loose brake disc bolts
  • Cable tension issues

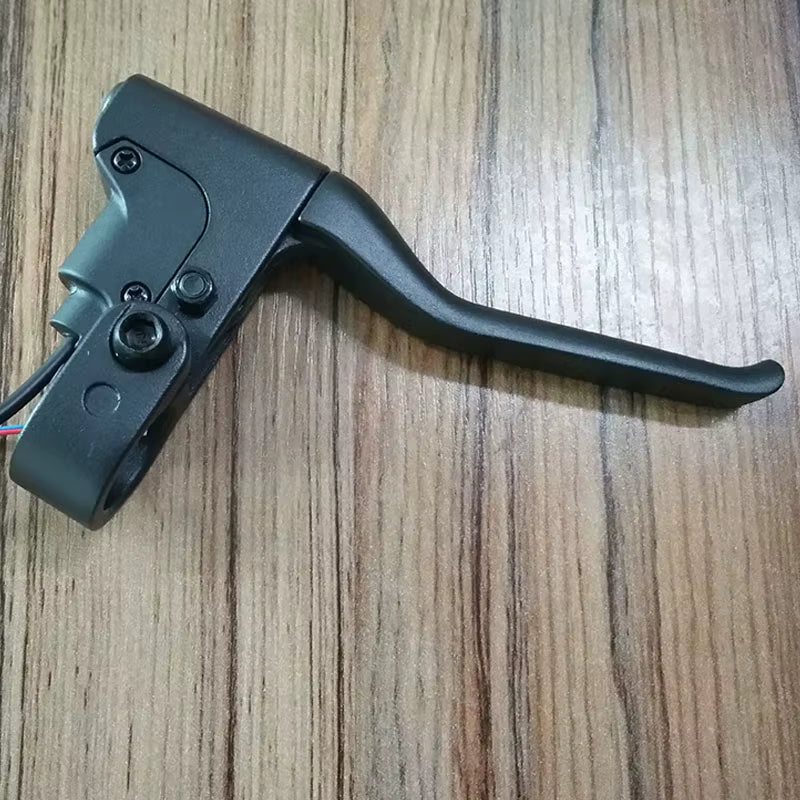

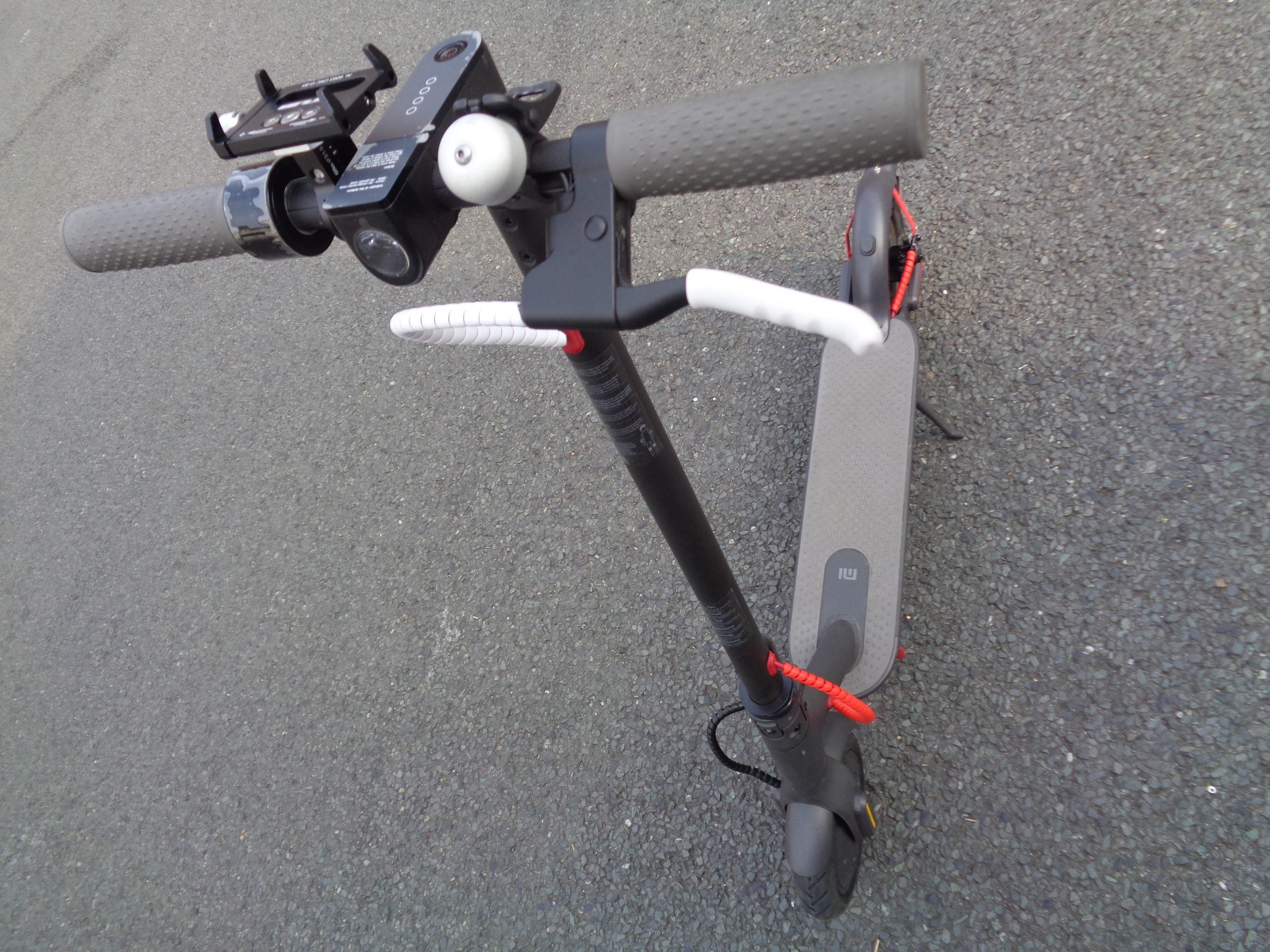

Xiaomi Brake Lever Problems

If your brake lever:

  • Feels loose
  • Doesn’t spring back
  • Triggers error code
  • Feels stiff

It may be:

  • Worn internally
  • Brake sensor issue
  • Cable stretched

Brake levers are inexpensive and easy to replace.

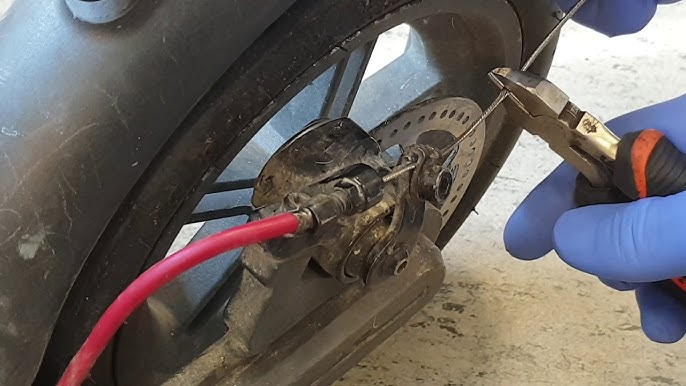

Brake Cable Issues

Mechanical brake cables stretch over time.

Signs of cable problems:

  • Excessive lever travel
  • Frayed cable
  • Uneven braking
  • Sudden loss of tension

Replacing the cable restores proper braking feel.

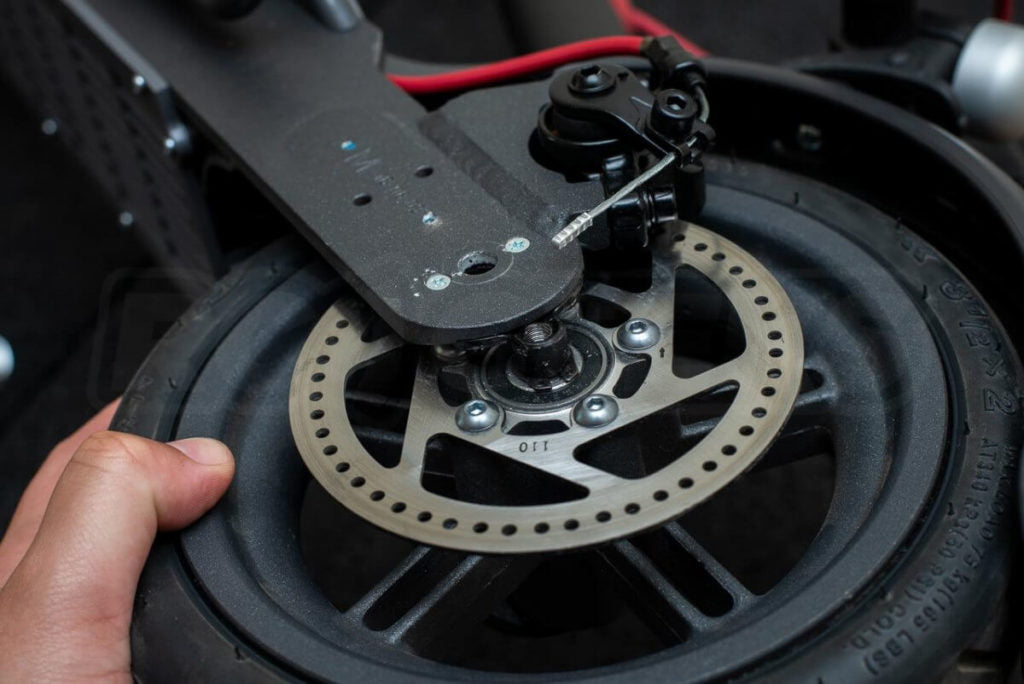

When to Replace the Brake Disc

Brake discs should be replaced if:

  • Warped
  • Deep grooves visible
  • Persistent vibration when braking

A damaged disc reduces braking efficiency and can damage new pads.

How Often Should Xiaomi Brakes Be Serviced?

For daily commuters:

  • Check adjustment: Monthly
  • Inspect pads: Every 2–3 months
  • Replace pads: As needed
  • Inspect disc: Every tyre change

Regular inspection prevents costly replacements.

Preventing Brake Problems

To extend brake life:

  • Avoid constant heavy braking
  • Keep disc clean
  • Check bolt tightness
  • Keep cable lubricated
  • Adjust brakes before they become too loose

Good maintenance prevents:

  • Disc warping
  • Pad glazing
  • Lever wear
  • Cable failure

Why are my Xiaomi scooter brakes squeaking?

Usually due to dust, glazed pads, or slight misalignment.

How do I tighten my Xiaomi brake?

Use the barrel adjuster near the brake lever or adjust the rear caliper.

When should I replace Xiaomi brake pads?

When pad thickness drops below 1mm or you hear grinding.

Can I ride with rubbing brakes?

It’s not recommended. It reduces efficiency and wears components faster.

Are Xiaomi brakes easy to replace?

Yes, with basic tools most riders can replace pads and cables themselves.

Final Verdict

Xiaomi brake issues are among the most common and easiest problems to fix. Whether it’s a loose cable, worn pads, misaligned caliper, or damaged disc, most brake faults can be resolved quickly with simple adjustments or affordable replacement parts.

Regular brake maintenance not only improves safety but also protects other components from unnecessary wear. Keeping your braking system in top condition ensures consistent stopping power, smoother rides, and longer scooter lifespan.

For riders maintaining their own scooters, brakes are one of the most important systems to inspect regularly.
