If your Ninebot Max G30 won’t turn on, shows no display, or appears completely dead — don’t assume the battery is finished.

In most cases, the issue is:

  • A loose internal connection
  • A faulty dashboard
  • A controller fault
  • Water ingress
  • A damaged power button

This guide walks you through the most common causes and what to check before replacing major components.

Step 1: Check the Obvious First

Before opening the scooter:

✔ Hold the power button for 3–5 seconds

✔ Try charging for 30 minutes

✔ Check if the charger light changes colour

✔ Look for any brief flashing on the display

If there is absolutely no response, continue below.

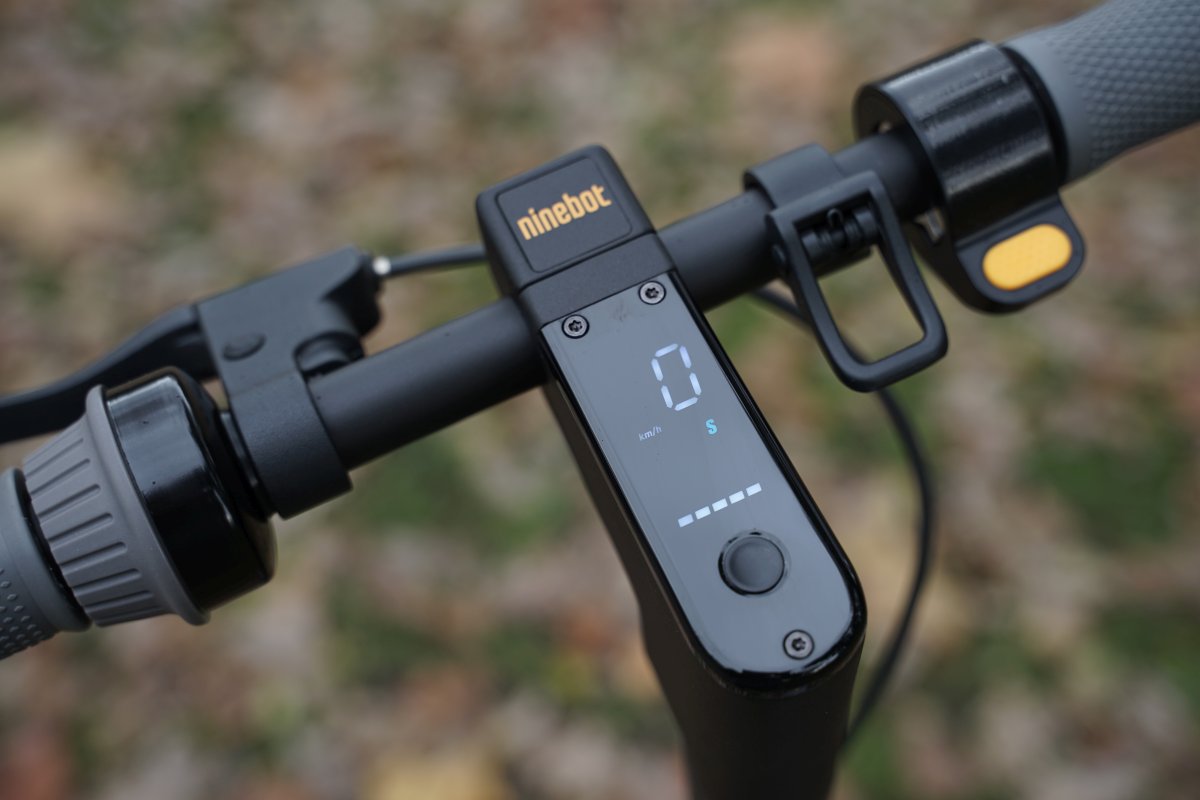

Step 2: Inspect the Dashboard & Power Button

The dashboard is one of the most common failure points.

Water can enter through:

  • The display seal
  • Stem area
  • Button membrane

Symptoms of dashboard failure:

  • No display
  • No power response
  • Random shutdowns
  • Error 10 previously shown

What to check:

  1. Remove the dashboard cover
  2. Inspect wiring connector
  3. Look for corrosion
  4. Check for burnt smell
Replacement Dashboard For Ninebot Max G30

Step 3: Check Stem Wiring

Inside the stem runs a wiring harness connecting:

  • Dashboard
  • Throttle
  • Brake sensor
  • Controller

Over time, wires can:

  • Rub
  • Pinch
  • Snap
  • Corrode

If communication is broken, the scooter may not power on.

What to inspect:

  • Loose white connectors
  • Broken insulation
  • Water residue
Replacement Dashboard Control Cable for ninebot max g30

Step 4: Controller Failure

If the dashboard is working but the scooter still won’t start, the controller may be the issue.

Controller failure is common if the scooter:

  • Overheated
  • Was ridden in heavy rain
  • Previously showed Error 18 or 27
  • Shut off while riding

Signs of controller failure:

  • Brief power flash then shutdown
  • Burning smell from deck
  • No throttle response
  • Repeated fuse-like shutdown behaviour

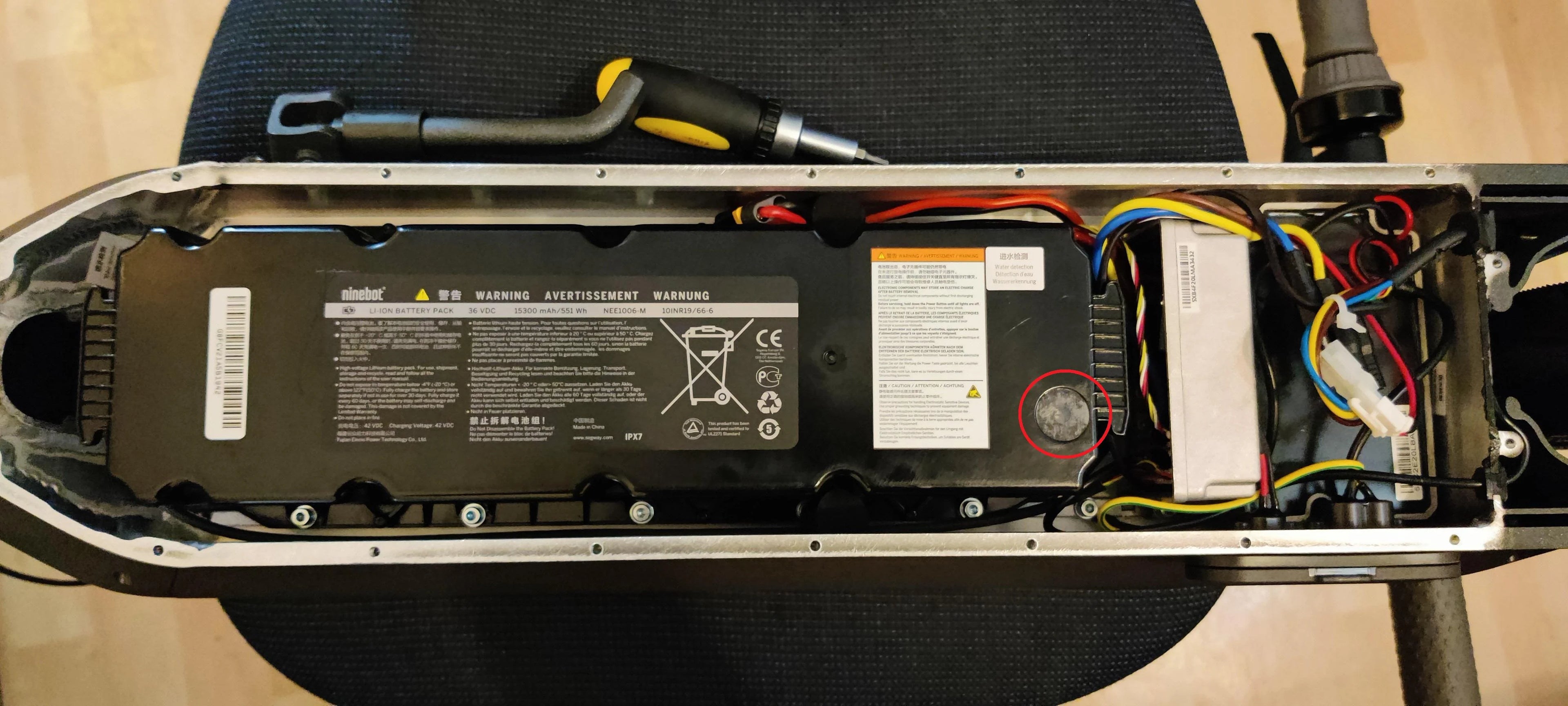

To inspect:

  1. Remove deck plate
  2. Check for water inside
  3. Inspect controller for burn marks
Replacement Controller for ninebot max g30

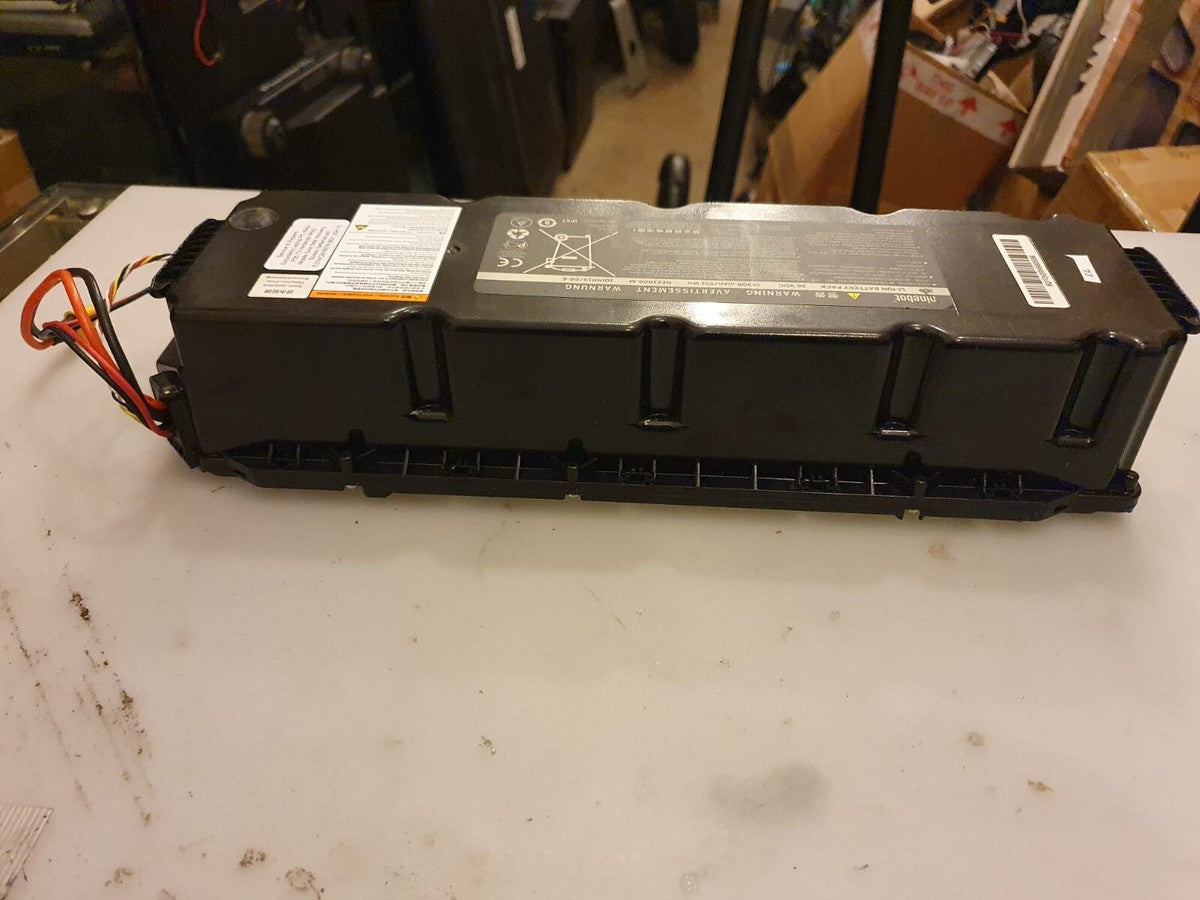

Step 5: Battery Connection Issues

Even though battery failure is less common, connection problems are not.

Check:

  • Main battery connector
  • XT connector security
  • Signs of melting or looseness

If the scooter was stored unused for months, the battery may have gone into protection mode.

⚠ Important: Always rule out wiring and controller issues before assuming battery failure.

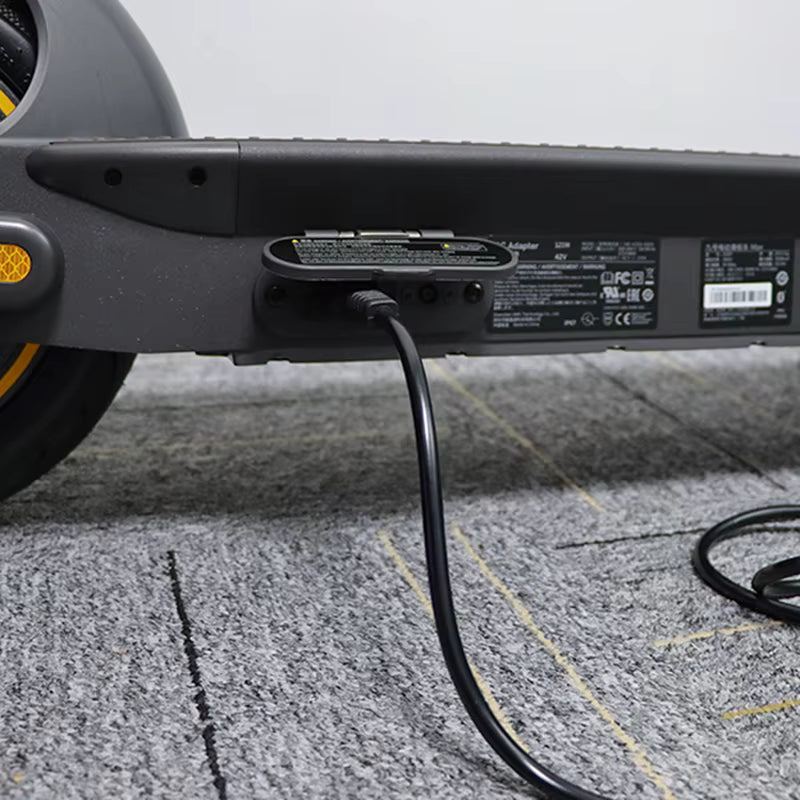

Step 6: Charger & Charging Port

Sometimes the scooter won’t power on because:

  • Battery is fully drained
  • Charger is faulty
  • Charging port is damaged

Check:

  • Charger LED colour
  • Loose charging port
  • Water in charging socket

When It’s NOT the Battery

Many owners assume the battery has failed.

In reality, on the Ninebot Max G30:

  • Controller faults are more common
  • Dashboard issues are frequent
  • Wiring problems happen often

Always diagnose before replacing expensive components.

Why won’t my Ninebot Max G30 turn on even after charging?

Check dashboard, wiring harness, and controller before assuming battery failure.

Can water cause my G30 to stop turning on?

Yes. Water ingress is a common cause of controller and dashboard failure.

How do I reset a Ninebot Max G30?

There is no manual reset button. Most issues require fault diagnosis and repair.

Final Verdict

If your Ninebot Max G30 won’t turn on, the most common causes are:

  1. Dashboard failure
  2. Stem wiring damage
  3. Controller malfunction
  4. Loose battery connector

The key is structured diagnosis — not random part replacement.

Start with the dashboard and wiring, then move to the controller if needed.

With proper inspection, many “dead” scooters are fully repairable.
